HOMEProductsERASE TUBE - Fire Extinguishing Device : Device specification

Device specification

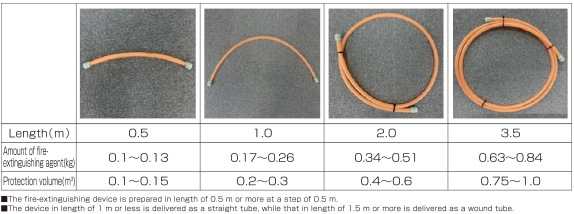

Length and protection volume

Dimensions

Most suitable temperature range of -20 to +50°C and service life of 8 years

Replacing the sensor tube in eight years is recommended even though the service life varies depending on the installation environment and ambient temperatures.

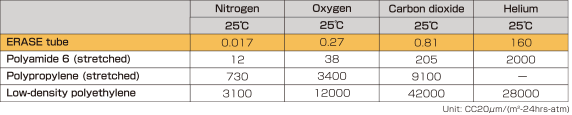

Comparison of gas permeability

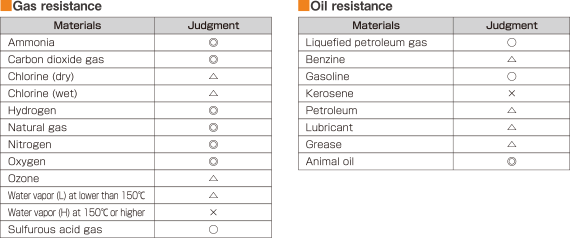

Chemical resistance

Patent

  • The tube was co-developed with the MITSUI KAGAKU SANSHI Company.
  • International patent pending
