Protection Objects and installation examples

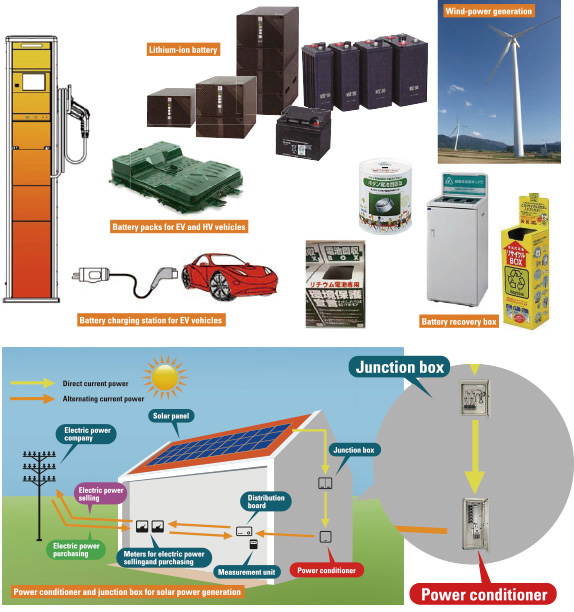

Protection Objects

Standard installation example

Early detection of abnormal heat generation and instantaneous release of fire-extinguishing agent are required for initial fire fighting. The ERASE TUBE (as a fire-extinguishing device) is suitable for protecting local areas having a high risk of fire occurrence such as battery rack and distribution panel (it does not target to be installed in spacious areas such as data center or factory). As such, the ERASE TUBE is a localized fire-extinguishing device installed in a space to be protected with volume of less than 1 m3 to prevent expansion of fire or damage.

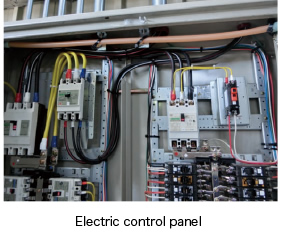

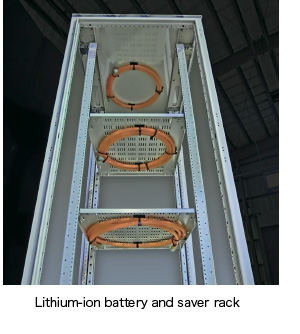

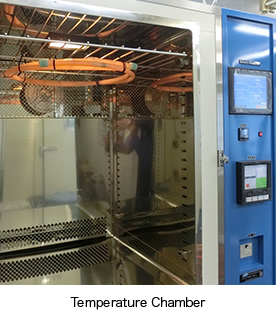

Lithium-ion battery and saver rackTemperature ChamberElectric control panelDistribution panel
