HOMEProductsERASE TUBE - Sensor Tube:Device specification

Device specification

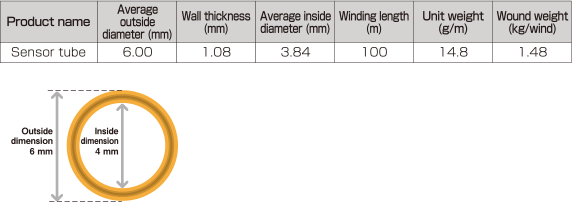

Dimensions

Most suitable temperature range of -20 to +50°C and service life of 8 years

Replacing the sensor tube in eight years is recommended even though the service life varies depending on the installation environment and ambient temperatures.

Water absorption ratio(%)3mm 24h

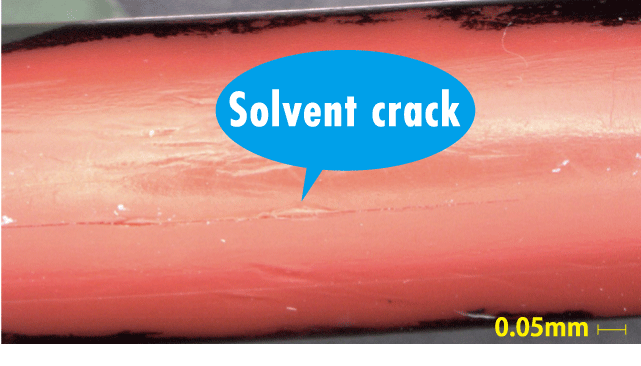

an enlarged photo of damaged Polyamide 6 tube.

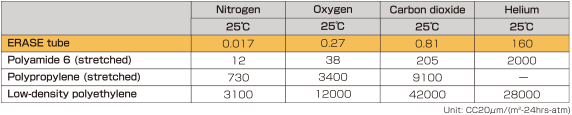

Comparison of gas permeability

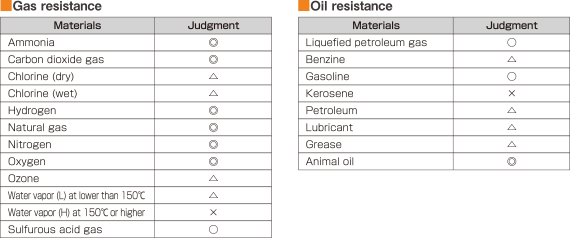

Chemical resistance

Patent

  • The tube was co-developed with the MITSUI KAGAKU SANSHI Company.
  • International patent pending
